CDH6.3.1开启kerberos认证

Posted on 2019-12-30 Word count in article: 3.7k Reading time ≈ 13 mins.

环境：基于centos 7.5,CDH 6.3.1

一.安装kerberos

kerberso是什么

之前没有接触过kerberos，最近项目需要基于CDH的多租户管理，所以简单了解了下。kerberos要做的工作就是验证进行权限申请的人是他声称的那个人的问题。

Kerberos协议：

Kerberos协议主要用于计算机网络的身份鉴别(Authentication), 其特点是用户只需输入一次身份验证信息就可以凭借此验证获得的票据(ticket-granting ticket)访问多个服务，即SSO(Single Sign On)。由于在每个Client和Service之间建立了共享密钥，使得该协议具有相当的安全性。

一句话来概括kerberos是用来做什么的：

“kerberos主要是用来做网络通信时候的身份认证（Authentication）”

kerberos的简单原理图如下,kerberos的原理实现远远复杂的多。

kerberos原理介绍参考资料：简书

1.安装KDC服务

可以将KDC安装在集群内也可以安装在单独的机器。这里安装到CM（h1）上

安装命令：

(base) [root@h1 ~]#  yum -y install krb5-server krb5-libs krb5-auth-dialog krb5-workstation

2.修改kdc的配置文件

(base) [root@h1 ~]#  vim /etc/krb5.conf

将以下内容粘贴进去

# Configuration snippets may be placed in this directory as well
includedir /etc/krb5.conf.d/
[logging]
 default = FILE:/var/log/krb5libs.log
 kdc = FILE:/var/log/krb5kdc.log
 admin_server = FILE:/var/log/kadmind.log
[libdefaults]
 dns_lookup_realm = false
 ticket_lifetime = 24h
 renew_lifetime = 7d
 forwardable = true
 rdns = false
 pkinit_anchors = /etc/pki/tls/certs/ca-bundle.crt
 default_realm = CAT.COM
 #default_ccache_name = KEYRING:persistent:%{uid}
[realms]
 CAT.COM = {
  kdc = master
  admin_server = master
 }
[domain_realm]
.cat.com = CAT.COM
cat.com = CAT.COM

*cat.com/CAT.COM。为自定义名称

*默认ticket有效时常为24H,续约时长为7D,每次的续约要在有效期内进行续约,如24小时ticket时长，需要在24小时内进行续约。否则将会过期无法续约。

续约方法：

sudo到需要续约的用户下，并且使用kinit username进行登录。

kinit -R进行续约然后用 klist 查看过期时间。

3 修改/var/kerberos/krb5kdc/kadm5.acl

(base) [root@h1 ~]# vim /var/kerberos/krb5kdc/kadm5.acl

*/admin@HADOOP.COM      *
*/master@HADOOP.COM      *

4 修改 /var/kerberos/krb5kdc/kdc.conf

(base) [root@h1 ~]# vim /var/kerberos/krb5kdc/kdc.conf

将以下内容复制

[kdcdefaults]
 kdc_ports = 88
 kdc_tcp_ports = 88

[realms]
 CAT.COM = {
  #master_key_type = aes256-cts
  #ticket_lifetime = 10m
  max_renewable_life= 7d 0h 0m 0s
  acl_file = /var/kerberos/krb5kdc/kadm5.acl
  dict_file = /usr/share/dict/words
  admin_keytab = /var/kerberos/krb5kdc/kadm5.keytab
  supported_enctypes = aes256-cts:normal aes128-cts:normal des3-hmac-sha1:normal arcfour-hmac:normal camellia256-cts:normal camellia128-cts:normal des-hmac-sha1:normal des-cbc-md5:normal des-cbc-crc:normal
 }

5 创建Kerberos数据库

创建命令：

(base) [root@h1 ~]#  kdb5_util create –r CAT.COM -s

Loading random data

Initializing database '/var/kerberos/krb5kdc/principal' for realm 'CAT.COM',

master key name 'K/M@CAT.COM'

You will be prompted for the database Master Password.

It is important that you NOT FORGET this password.

Enter KDC database master key:

Re-enter KDC database master key to verify:

#此处需要输入Kerberos数据库的密码。

6 创建Kerberos的管理账号

(base) [root@h1 ~]# kadmin.local

Authenticating as principal root/admin@CAT.COM with password.

kadmin.local:  addprinc admin/admin@CAT.COM

WARNING: no policy specified for admin/admin@CAT.COM; defaulting to no policy

Enter password for principal "admin/admin@CAT.COM":

Re-enter password for principal "admin/admin@CAT.COM":

Principal "admin/admin@CAT.COM" created.

kadmin.local:  exit

7.启动krb5dc，kadmin，并设置kerberos开机自启

启动krb5dc,kadmin

[root@h1 ~]# systemctl enable kadmin
Created symlink from /etc/systemd/system/multi-user.target.wants/kadmin.service to /usr/lib/systemd/system/kadmin.service.
[root@h1 ~]# systemctl start krb5kdc
[root@h1 ~]# systemctl start kadmin

设置开机自启

[root@h1 ~]# systemctl enable krb5kdc

8.集群其他机器安装Kerberos客户端，包括KDC机器

[root@h2 ~]#yum -y install krb5-libs krb5-workstation
[root@h3 ~]#yum -y install krb5-libs krb5-workstation
[root@h4 ~]#yum -y install krb5-libs krb5-workstation

9 在CM服务器上安装额外的包

[root@h1 ~]# yum -y install openldap-clients

10 将KDC server中的krb5.conf拷贝到集群所有机器的/etc/

scp /etc/krb5.conf root@h2:/etc/

11 在KDC中给Cloudera Manager添加管理员账号

(base) [root@h2 ~]# kadmin.local

Authenticating as principal admin/admin@CAT.COM with password.

kadmin.local:  addprinc cloudera-scm/admin@CAT.COM

WARNING: no policy specified for cloudera-scm/admin@CAT.COM; defaulting to no policy

Enter password for principal "cloudera-scm/admin@CAT.COM":

Re-enter password for principal "cloudera-scm/admin@CAT.COM":

Principal "cloudera-scm/admin@CAT.COM" created.

kadmin.local:  exit

二.进入CM管理页面配置kerberos

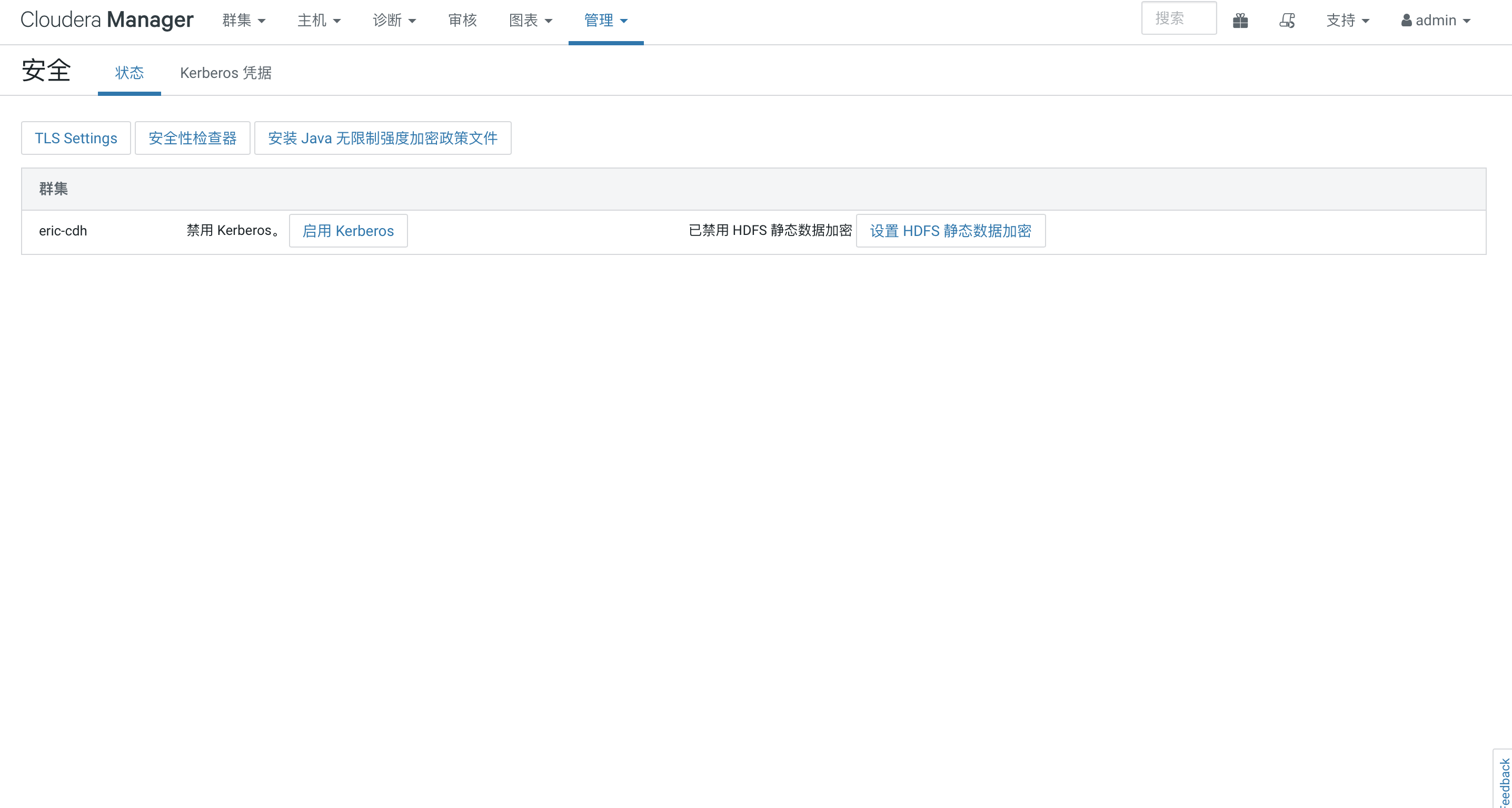

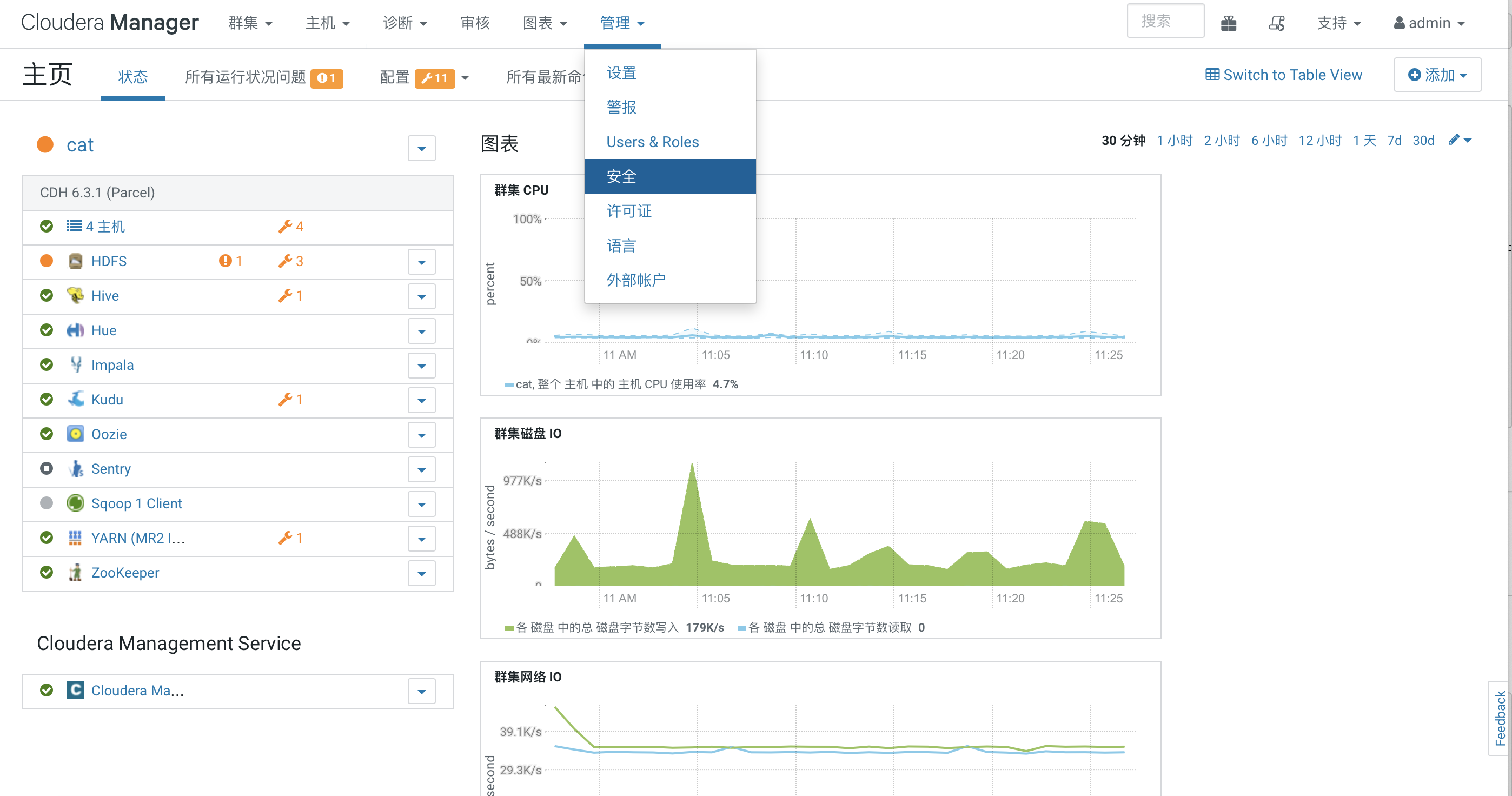

选择管理>安全>启用kerberos

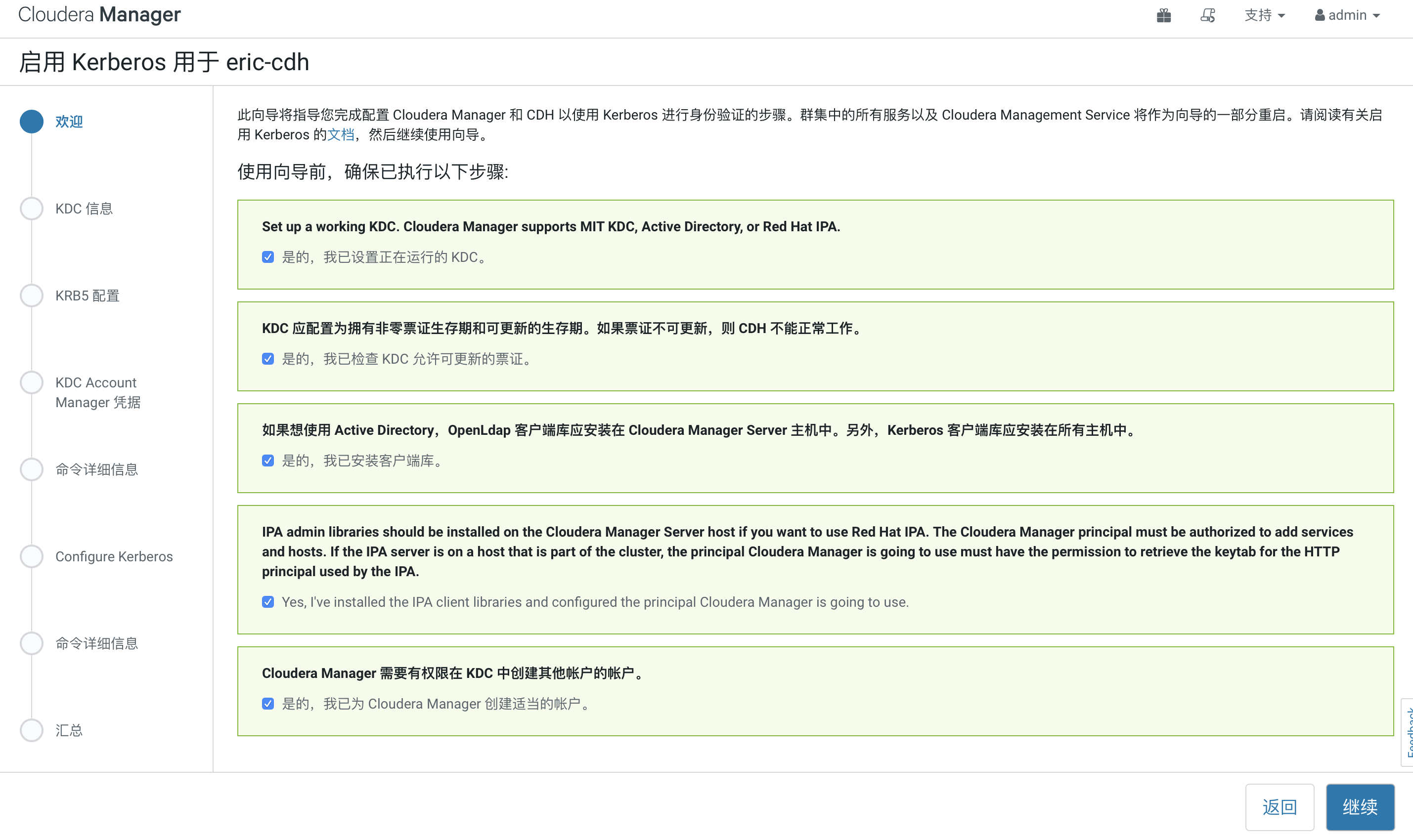

全部勾选

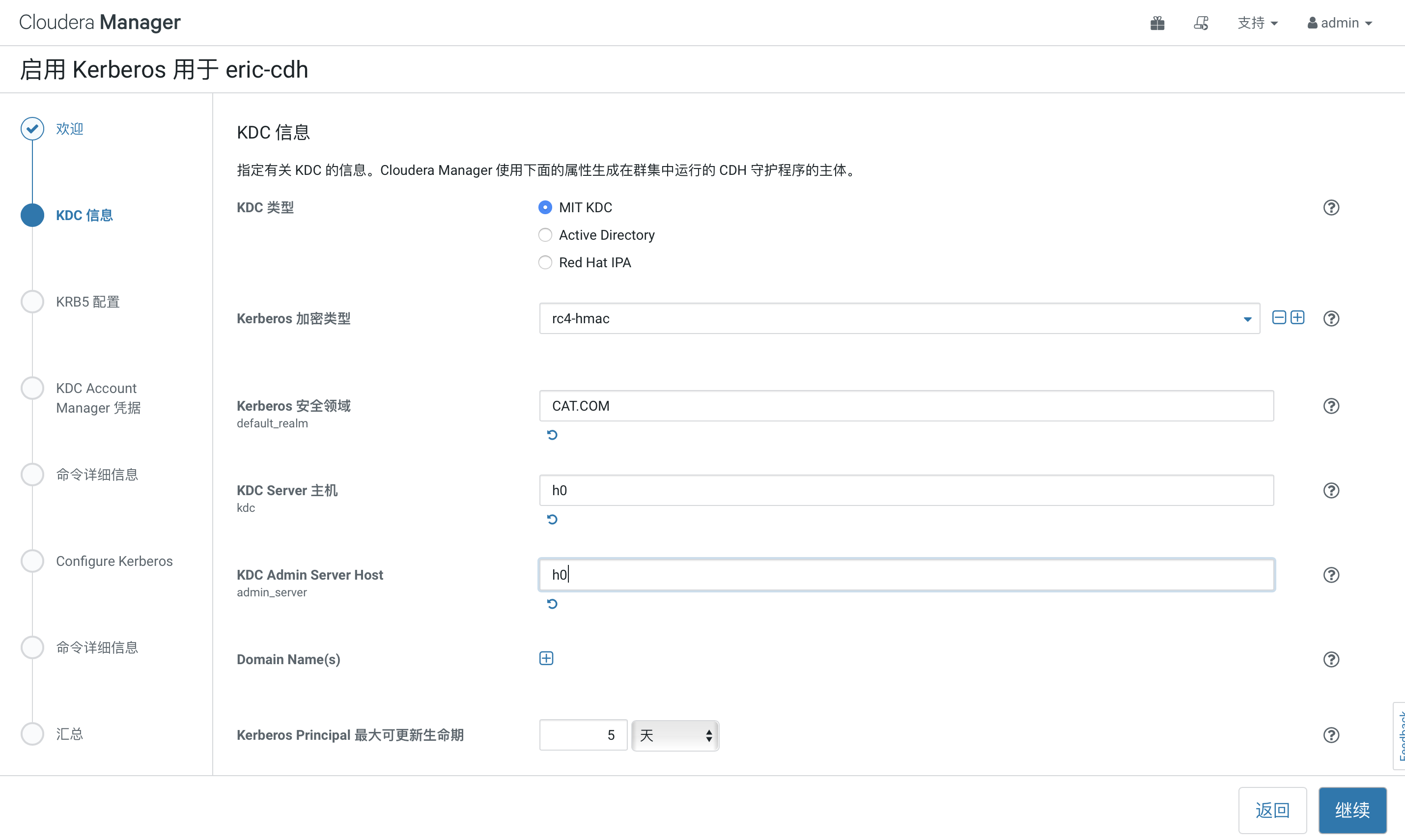

KDCserver和KDC admin server选择自己的KDC安装机器hostname

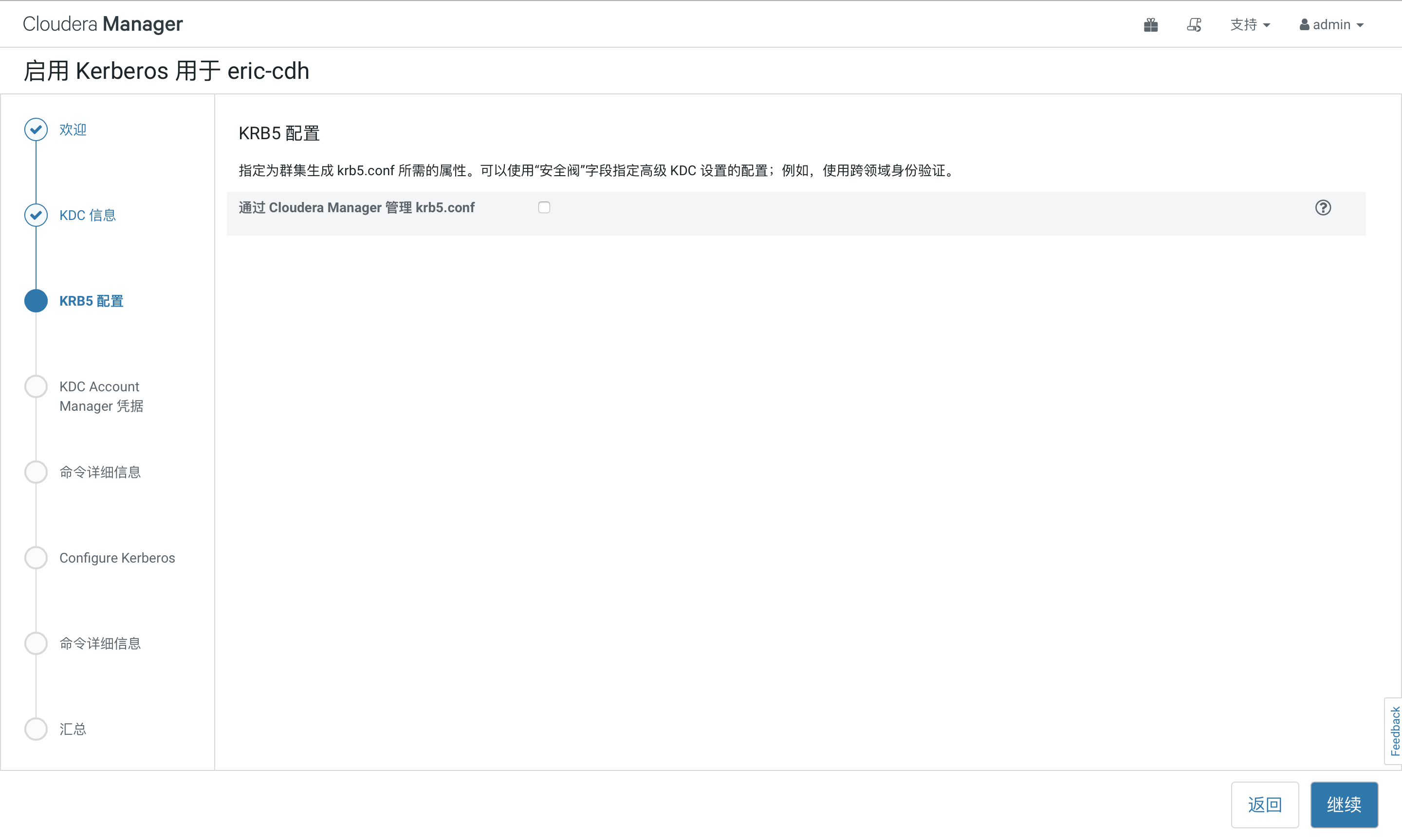

不勾选

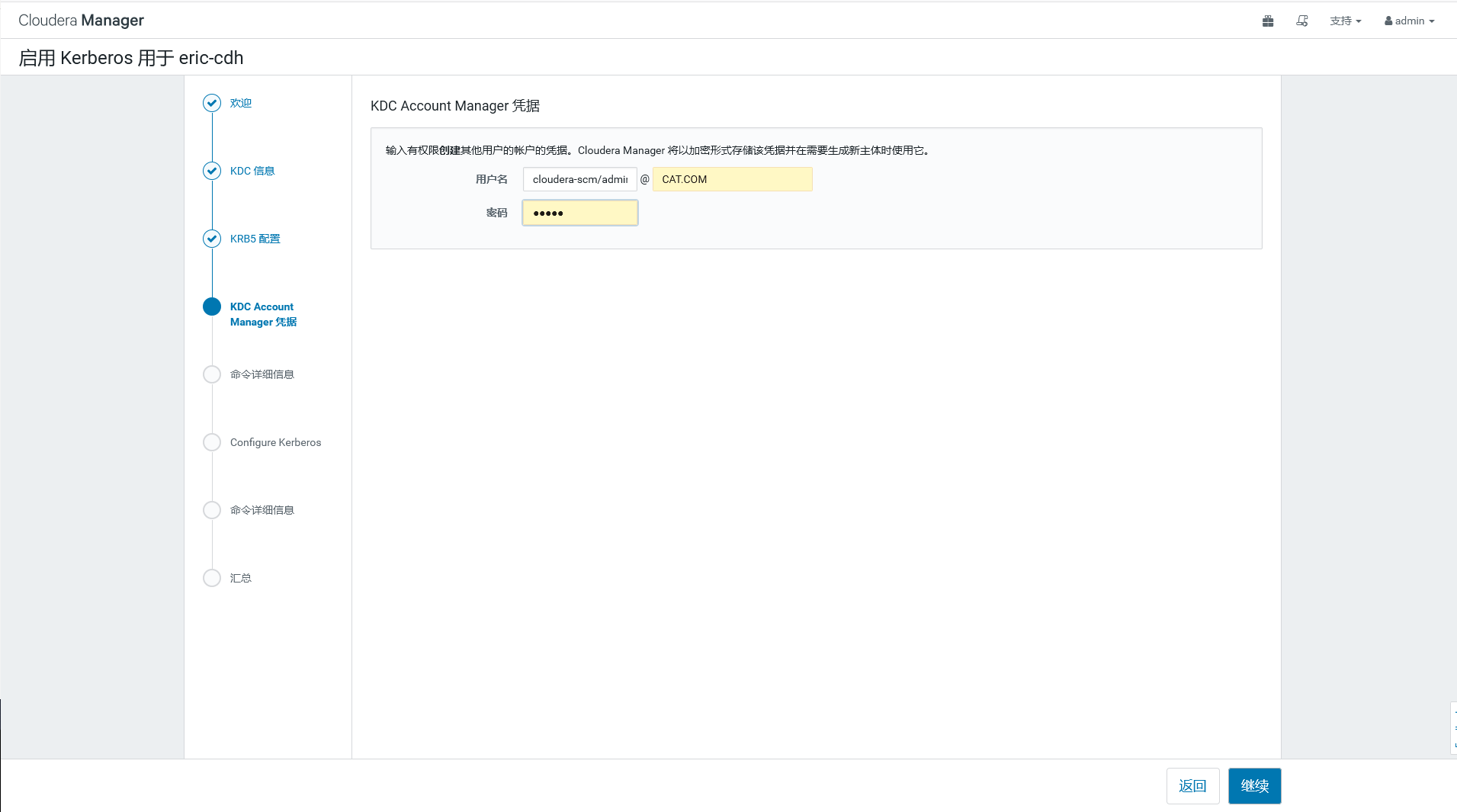

填写上面11步设置的用户和密码即可，然后一路确认。s

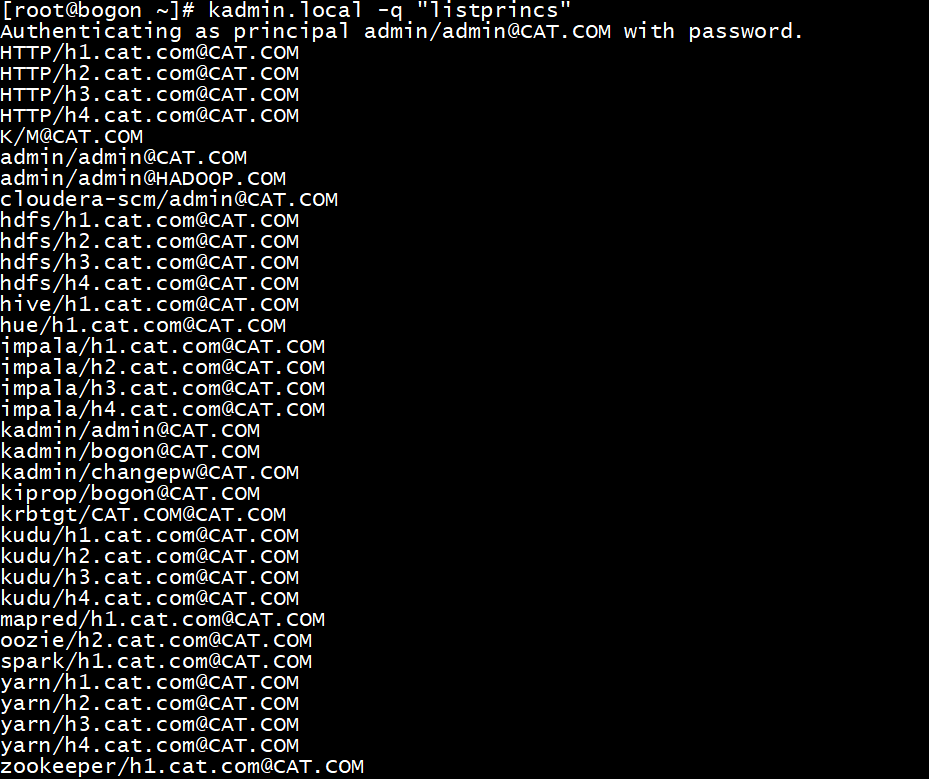

完成之后Kerberos会创建CDH相关用户，使用命令查看当前的所有kerberos用户，不过这些自动创建的用户不知道如何登陆，因为没有密码(后来发现要用不用角色的keytab登陆）

三.kerberos的使用

创建user1测试用户，执行Hive和MapReduce任务，需要在集群所有节点创建user1用户

1.使用kadmin创建一个user1的principal

(base) [root@h1 ~]# kadmin.local

Authenticating as principal admin/admin@CAT.COM with password.

kadmin.local:  addprinc user1@CAT.COM

WARNING: no policy specified for user1@CAT.COM; defaulting to no policy

Enter password for principal "user1@CATCOM":

Re-enter password for principal "user1@CAT.COM":

Principal "user1@CAT.COM" created.

kadmin.local:  exit

2.使用user1用户登录Kerberos

[root@h1 ~]# kdestroy
[root@h1 ~]# kinit user1
#设置user1登陆密码
Password for user1@CAT.COM:
#查看user1的有效期
(base) [root@h1 ~]# klist
Ticket cache: FILE:/tmp/krb5cc_0
Default principal: user1@CAT.COM
Valid starting       Expires              Service principal
12/26/2019 18:29:17  12/27/2019 18:29:17  krbtgt/CAT.COM@CAT.COM
        renew until 01/03/2019 18:29:17

3.在集群所有节点添加user1用户

一定要在所有机器添加，因为任务是分布式的，比如yarn和mr会分配container给不同的机器，不然跑任务会报错。

添加user1用户

[root@h1 ~]#useradd user1
[root@h2 ~]#useradd user1
[root@h3 ~]#useradd user1

把user1用户添加到hdfs,hadoop用户组中

[root@h1 ~]# usermod -G hdfs,hadoop user1
[root@h1 ~]# usermod -G hadoop user1

4.运行MapReduce作业

#先用user1登陆kerberos
[root@h1 conf]# su - user1
[root@h1 conf]# kinit user1
Password for user1@CAT.COM:
[root@h1 conf]# klist
Ticket cache: FILE:/tmp/krb5cc_0
Default principal: user1@CAT.COM
Valid starting       Expires              Service principal
12/30/2019 22:27:40  12/31/2019 22:27:40  krbtgt/CAT.COM@CAT.COM
        renew until 01/06/2020 22:27:40
#测试mr demo
[root@h1 conf]# hadoop jar /opt/cloudera/parcels/CDH/lib/hadoop-mapreduce/hadoop-mapreduce-examples.jar pi 10 1
WARNING: Use "yarn jar" to launch YARN applications.
Number of Maps  = 10
Samples per Map = 1
Wrote input for Map #0
Wrote input for Map #1
Wrote input for Map #2
Wrote input for Map #3
Wrote input for Map #4
Wrote input for Map #5
Wrote input for Map #6
Wrote input for Map #7
Wrote input for Map #8
Wrote input for Map #9
Starting Job
19/12/30 22:32:49 INFO client.RMProxy: Connecting to ResourceManager at h1.cat.com/192.168.1.171:8032
19/12/30 22:32:50 INFO hdfs.DFSClient: Created token for user2: HDFS_DELEGATION_TOKEN owner=user2@CAT.COM, renewer=yarn, realUser=, issueDate=1577716370019, maxDate=1578321170019, sequenceNumber=4, masterKeyId=10 on 192.168.1.171:8020
19/12/30 22:32:50 INFO security.TokenCache: Got dt for hdfs://h1.cat.com:8020; Kind: HDFS_DELEGATION_TOKEN, Service: 192.168.1.171:8020, Ident: (token for user2: HDFS_DELEGATION_TOKEN owner=user2@CAT.COM, renewer=yarn, realUser=, issueDate=1577716370019, maxDate=1578321170019, sequenceNumber=4, masterKeyId=10)
19/12/30 22:32:50 INFO mapreduce.JobResourceUploader: Disabling Erasure Coding for path: /user/user2/.staging/job_1577701614246_0003
19/12/30 22:32:50 INFO input.FileInputFormat: Total input files to process : 10
19/12/30 22:32:50 INFO mapreduce.JobSubmitter: number of splits:10
19/12/30 22:32:50 INFO Configuration.deprecation: yarn.resourcemanager.system-metrics-publisher.enabled is deprecated. Instead, use yarn.system-metrics-publisher.enabled
19/12/30 22:32:50 INFO mapreduce.JobSubmitter: Submitting tokens for job: job_1577701614246_0003
19/12/30 22:32:50 INFO mapreduce.JobSubmitter: Executing with tokens: [Kind: HDFS_DELEGATION_TOKEN, Service: 192.168.1.171:8020, Ident: (token for user2: HDFS_DELEGATION_TOKEN owner=user2@CAT.COM, renewer=yarn, realUser=, issueDate=1577716370019, maxDate=1578321170019, sequenceNumber=4, masterKeyId=10)]
19/12/30 22:32:51 INFO conf.Configuration: resource-types.xml not found
19/12/30 22:32:51 INFO resource.ResourceUtils: Unable to find 'resource-types.xml'.
19/12/30 22:32:51 INFO impl.YarnClientImpl: Submitted application application_1577701614246_0003
19/12/30 22:32:51 INFO mapreduce.Job: The url to track the job: http://h1.cat.com:8088/proxy/application_1577701614246_0003/
19/12/30 22:32:51 INFO mapreduce.Job: Running job: job_1577701614246_0003
19/12/30 22:33:04 INFO mapreduce.Job: Job job_1577701614246_0003 running in uber mode : false
19/12/30 22:33:04 INFO mapreduce.Job:  map 0% reduce 0%
19/12/30 22:33:14 INFO mapreduce.Job:  map 20% reduce 0%
19/12/30 22:33:19 INFO mapreduce.Job:  map 30% reduce 0%
19/12/30 22:33:20 INFO mapreduce.Job:  map 40% reduce 0%
19/12/30 22:33:24 INFO mapreduce.Job:  map 50% reduce 0%
19/12/30 22:33:25 INFO mapreduce.Job:  map 60% reduce 0%
19/12/30 22:33:30 INFO mapreduce.Job:  map 80% reduce 0%
19/12/30 22:33:35 INFO mapreduce.Job:  map 100% reduce 0%
19/12/30 22:33:41 INFO mapreduce.Job:  map 100% reduce 100%
19/12/30 22:33:42 INFO mapreduce.Job: Job job_1577701614246_0003 completed successfully
19/12/30 22:33:42 INFO mapreduce.Job: Counters: 54
        File System Counters
                FILE: Number of bytes read=49
                FILE: Number of bytes written=2433690
                FILE: Number of read operations=0
                FILE: Number of large read operations=0
                FILE: Number of write operations=0
......................
Job Finished in 53.382 seconds
Estimated value of Pi is 3.60000000000000000000

测试连接 beelin

beeline> !connect jdbc:hive2://localhost:10000/;principal=hive/h1@CAT.COM
Connecting to jdbc:hive2://localhost:10000/;principal=hive/h1@CAT.COM
Connected to: Apache Hive (version 2.1.1-cdh6.3.1)
Driver: Hive JDBC (version 2.1.1-cdh6.3.1)
Transaction isolation: TRANSACTION_REPEATABLE_READ
0: jdbc:hive2://localhost:10000/>

以上就完成了kerberos的设置

四.下面我们来设置下kerberos hive环境

需要完成以下设置，才可以使用hive

不然可能会报下面的错误。
两种情况下会报以下错误：

1.ticket过期没有续约情况下
2.没有生成keytab

“Failed on local exception: java.io.IOException: org.apache.hadoop.security.AccessControlException: Client cannot authenticate via:[TOKEN, KERBEROS]; Host Details : local host is: “h1.cat.com/192.168.1.171”; destination host is: “h1.cat.com”:8020; "

[root@h1 ~]# hive
WARNING: Use "yarn jar" to launch YARN applications.
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/cloudera/parcels/CDH-6.3.1-1.cdh6.3.1.p0.1470567/jars/log4j-slf4j-impl-2.8.2.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/cloudera/parcels/CDH-6.3.1-1.cdh6.3.1.p0.1470567/jars/slf4j-log4j12-1.7.25.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.apache.logging.slf4j.Log4jLoggerFactory]

Logging initialized using configuration in jar:file:/opt/cloudera/parcels/CDH-6.3.1-1.cdh6.3.1.p0.1470567/jars/hive-common-2.1.1-cdh6.3.1.jar!/hive-log4j2.properties Async: false
Exception in thread "main" java.lang.RuntimeException: java.io.IOException: Failed on local exception: java.io.IOException: org.apache.hadoop.security.AccessControlException: Client cannot authenticate via:[TOKEN, KERBEROS]; Host Details : local host is: "h1.cat.com/192.168.1.171"; destination host is: "h1.cat.com":8020;
        at org.apache.hadoop.hive.ql.session.SessionState.start(SessionState.java:604)
        at org.apache.hadoop.hive.ql.session.SessionState.beginStart(SessionState.java:545)
        at org.apache.hadoop.hive.cli.CliDriver.run(CliDriver.java:763)
        at org.apache.hadoop.hive.cli.CliDriver.main(CliDriver.java:699)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
        at java.lang.reflect.Method.invoke(Method.java:498)
        at org.apache.hadoop.util.RunJar.run(RunJar.java:313)
        at org.apache.hadoop.util.RunJar.main(RunJar.java:227)
Caused by: java.io.IOException: Failed on local exception: java.io.IOException: org.apache.hadoop.security.AccessControlException: Client cannot authenticate via:[TOKEN, KERBEROS]; Host Details : local host is: "h1.cat.com/192.168.1.171"; destination host is: "h1.cat.com":8020;
        at org.apache.hadoop.net.NetUtils.wrapException(NetUtils.java:808)
        at org.apache.hadoop.ipc.Client.getRpcResponse(Client.java:1503)
        at org.apache.hadoop.ipc.Client.call(Client.java:1445)
        at org.apache.hadoop.ipc.Client.call(Client.java:1355)
        at org.apache.hadoop.ipc.ProtobufRpcEngine$Invoker.invoke(ProtobufRpcEngine.java:228)
        at org.apache.hadoop.ipc.ProtobufRpcEngine$Invoker.invoke(ProtobufRpcEngine.java:116)
        at com.sun.proxy.$Proxy28.getFileInfo(Unknown Source)
        at org.apache.hadoop.hdfs.protocolPB.ClientNamenodeProtocolTranslatorPB.getFileInfo(ClientNamenodeProtocolTranslatorPB.java:875)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
        at java.lang.reflect.Method.invoke(Method.java:498)
        at org.apache.hadoop.io.retry.RetryInvocationHandler.invokeMethod(RetryInvocationHandler.java:422)
        at org.apache.hadoop.io.retry.RetryInvocationHandler$Call.invokeMethod(RetryInvocationHandler.java:165)
        at org.apache.hadoop.io.retry.RetryInvocationHandler$Call.invoke(RetryInvocationHandler.java:157)
        at org.apache.hadoop.io.retry.RetryInvocationHandler$Call.invokeOnce(RetryInvocationHandler.java:95)
        at org.apache.hadoop.io.retry.RetryInvocationHandler.invoke(RetryInvocationHandler.java:359)
        at com.sun.proxy.$Proxy29.getFileInfo(Unknown Source)
        at org.apache.hadoop.hdfs.DFSClient.getFileInfo(DFSClient.java:1630)
        at org.apache.hadoop.hdfs.DistributedFileSystem$29.doCall(DistributedFileSystem.java:1496)
        at org.apache.hadoop.hdfs.DistributedFileSystem$29.doCall(DistributedFileSystem.java:1493)
        at org.apache.hadoop.fs.FileSystemLinkResolver.resolve(FileSystemLinkResolver.java:81)
        at org.apache.hadoop.hdfs.DistributedFileSystem.getFileStatus(DistributedFileSystem.java:1508)
        at org.apache.hadoop.fs.FileSystem.exists(FileSystem.java:1617)
        at org.apache.hadoop.hive.ql.session.SessionState.createRootHDFSDir(SessionState.java:712)
        at org.apache.hadoop.hive.ql.session.SessionState.createSessionDirs(SessionState.java:650)
        at org.apache.hadoop.hive.ql.session.SessionState.start(SessionState.java:580)
        ... 9 more
Caused by: java.io.IOException: org.apache.hadoop.security.AccessControlException: Client cannot authenticate via:[TOKEN, KERBEROS]
        at org.apache.hadoop.ipc.Client$Connection$1.run(Client.java:756)

1.生成 keytab

在 KDC server 节点上执行下面命令：

生成集群所有机器的keytab 汇总后发送给集群每个机器。

cd /var/kerberos/krb5kdc/

kadmin.local -q "addprinc -randkey hive/h1.cat.com@CAT.COM "
kadmin.local -q "addprinc -randkey hive/h2.cat.com@CAT.COM "
kadmin.local -q "addprinc -randkey hive/h3.cat.com@CAT.COM "

kadmin.local -q "xst  -k hive.keytab  hive/h1.cat.com@CAT.COM "
kadmin.local -q "xst  -k hive.keytab  hive/h2.cat.com@CAT.COM "
kadmin.local -q "xst  -k hive.keytab  hive/h3.cat.com@CAT.COM "

*h1.cat.com为hostname,CAT.COM为kerber设置的安全域,在前面设置的。

2 拷贝 hive.keytab 文件到其他节点的 /etc/hive/conf 目录

$ scp hive.keytab cdh1:/etc/hive/conf
$ scp hive.keytab cdh2:/etc/hive/conf
$ scp hive.keytab cdh3:/etc/hive/conf

并设置权限，分别在 cdh1、cdh2、cdh3 上执行：

$ ssh cdh1 "cd /etc/hive/conf/;chown hive:hadoop hive.keytab ;chmod 400 *.keytab"
$ ssh cdh2 "cd /etc/hive/conf/;chown hive:hadoop hive.keytab ;chmod 400 *.keytab"
$ ssh cdh3 "cd /etc/hive/conf/;chown hive:hadoop hive.keytab ;chmod 400 *.keytab"

有了keytab 相当于有了永久凭证，不需要提供密码(如果修改 kdc 中的 principal 的密码，则该 keytab 就会失效)，所以其他用户如果对该文件有读权限，就可以冒充 keytab 中指定的用户身份访问 hadoop，所以 keytab 文件需要确保只对 owner 有读权限(0400)

然后重启hive

[user1@h1 ~]$ kinit -kt hive.keytab hive/h1
[user1@h1 ~]$ hive

再次执行hive命令。运行正常

五.问题与总结

1.连接beelin遇到的错误

问题貌似出在：

1.没有把用户加到机器
2.没有把用户添加到hdfs,hadoop用户组中

beeline> !connect jdbc:hive2://h1:10000/;principal=hive/h1@CAT.COM
Connecting to jdbc:hive2://h1:10000/;principal=hive/h1@CAT.COM
19/12/30 17:36:50 [main]: WARN jdbc.HiveConnection: Failed to connect to h1:10000
Could not open connection to the HS2 server. Please check the server URI and if the URI is correct, then ask the administrator to check the server status.
Error: Could not open client transport with JDBC Uri: jdbc:hive2://h1:10000/;principal=hive/h1@CAT.COM: java.net.ConnectException: Connection refused (Connection refused) (state=08S01,code=0)

beeline> !connect jdbc:hive2://h1:10000/;principal=hive/h1@CAT.COM
Connecting to jdbc:hive2://h1:10000/;principal=hive/h1@CAT.COM
19/12/30 19:10:22 [main]: ERROR transport.TSaslTransport: SASL negotiation failure
javax.security.sasl.SaslException: GSS initiate failed

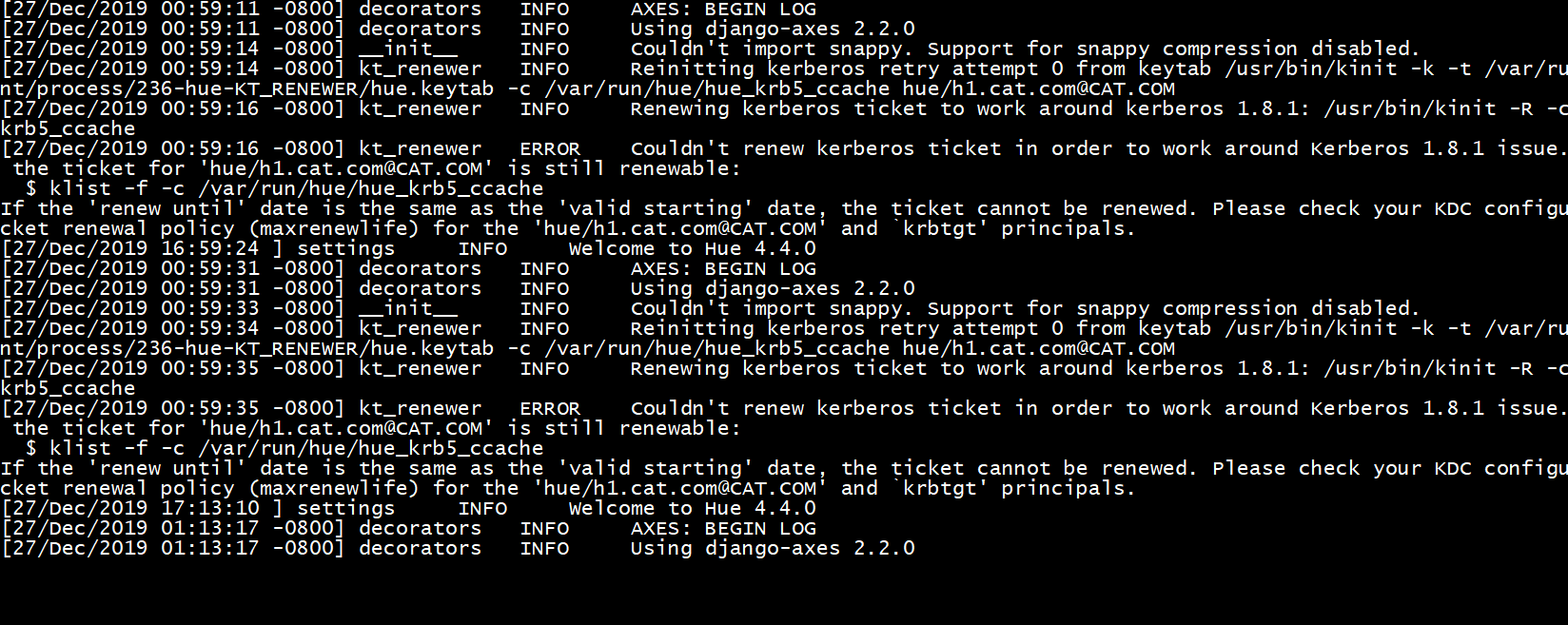

2.hue报错,Kerberos Ticket Renewer无法启动
错误：

INFO kt_renewer
Renewing kerberos ticket to work around kerberos 1.8.1: /bin/kinit -R -c /var/run/hue/hue_krb5_ccache
ERROR kt_renewer Couldn't renew kerberos ticket in order to work around Kerberos 1.8.1 issue. Please check that the ticket for 'hue/$server1@ANYTHING.COM' is still renewable:
$ klist -f -c /var/run/hue/hue_krb5_ccache
If the 'renew until' date is the same as the 'valid starting' date, the ticket cannot be renewed. Please check your KDC configuration, and the ticket renewal policy (maxrenewlife) for the 'hue/$server1@ANYTHING.COM' and `krbtgt' principals.
[19/Feb/2019 07:32:04 ] settings INFO Welcome to Hue 3.9.0

原因是KDC配置有一项配置有问题
/var/kerberos/krb5kdc/kdc.conf
修改后重启就好。注释 #ticket_lifetime = 10m 不应该写。ticket相关设置在client中设置

[kdcdefaults]
 kdc_ports = 88
 kdc_tcp_ports = 88

[realms]
 CAT.COM = {
  #master_key_type = aes256-cts
  #ticket_lifetime = 10m
  max_renewable_life= 7d 0h 0m 0s
  acl_file = /var/kerberos/krb5kdc/kadm5.acl
  dict_file = /usr/share/dict/words
  admin_keytab = /var/kerberos/krb5kdc/kadm5.keytab
  supported_enctypes = aes256-cts:normal aes128-cts:normal des3-hmac-sha1:normal arcfour-hmac:normal camellia256-cts:normal ca
mellia128-cts:normal des-hmac-sha1:normal des-cbc-md5:normal des-cbc-crc:normal
 }

另外一个可能引起的问题是maxnewlisf配置有问题。
大部分导致的原因是maxnewlife时间是0

官方介绍
https://docs.cloudera.com/documentation/manager/5-1-x/Configuring-Hadoop-Security-with-Cloudera-Manager/cm5chs_enable_hue_sec_s10.html

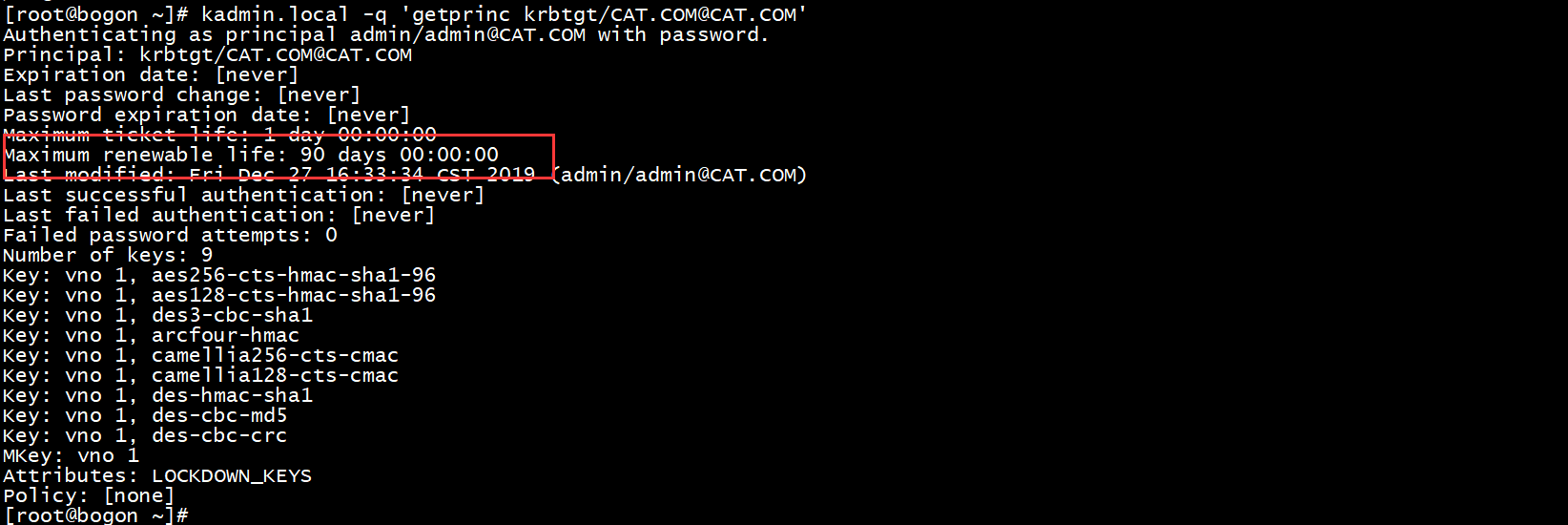

命令查看maxnewlife的配置: kadmin.local -q 'getprinc krbtgt/CAT.COM@CAT.COM'
看是否为0，如果是0需要修改。

用两个命令修改,或者去配置文件/var/kerberos/krb5kdc/kdc.conf

修改maxnew life时间

modprinc -maxrenewlife 90day krbtgt/CAT.COM@CAT.COM

修改单个用户的maxnew life时间

modprinc -maxrenewlife 90day allow_renewable hue/h1.cat.com@CAT.COM

3.hive metastore问题:

原因是hive的keytab生成有误，metastore无法正常启动
解决办法：按照上面的步骤重新生成新的keytab,然后发送到所有机器即可

failure to login: for principal: hive/h1.cat.com@CAT.COM from keytab hive.keytab javax.security.auth.logi
n.LoginException: Checksum failed

```
2019-12-30 18:22:08,407 ERROR org.apache.hadoop.hive.metastore.HiveMetaStore: [main]: org.apache.thrift.transport.TTransportException: org.apache
.hadoop.security.KerberosAuthException: failure to login: for principal: hive/h1.cat.com@CAT.COM from keytab hive.keytab javax.security.auth.logi
n.LoginException: Checksum failed
        at org.apache.hadoop.hive.thrift.HadoopThriftAuthBridge$Server.<init>(HadoopThriftAuthBridge.java:327)
        at org.apache.hadoop.hive.thrift.HadoopThriftAuthBridge.createServer(HadoopThriftAuthBridge.java:101)
        at org.apache.hadoop.hive.metastore.HiveMetaStore.startMetaStore(HiveMetaStore.java:7291)
        at org.apache.hadoop.hive.metastore.HiveMetaStore.main(HiveMetaStore.java:7210)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
        at java.lang.reflect.Method.invoke(Method.java:498)
        at org.apache.hadoop.util.RunJar.run(RunJar.java:313)
        at org.apache.hadoop.util.RunJar.main(RunJar.java:227)
Caused by: org.apache.hadoop.security.KerberosAuthException: failure to login: for principal: hive/h1.cat.com@CAT.COM from keytab hive.keytab jav
ax.security.auth.login.LoginException: Checksum failed


================================================================

### 其他总结

**给新建用户分配权限步骤**

- 1.创建kerberos用户和密码

[root@bogon ~]# kadmin.local -q “addprinc user1”
Authenticating as principal root/admin@CAT.COM with password.
WARNING: no policy specified for user1@CAT.COM; defaulting to no policy
Enter password for principal “user1@CAT.COM“:
Re-enter password for principal “user1@CAT.COM“:
Principal “user1@CAT.COM“ created.


**2. 在所有机器节点添加 user1 用户**

```bash
useradd user1        # 每台节点都执行

3. 登陆验证

su - user1
kinit user1          # 输入上面设置的密码
klist                # 查看有效期

其他记录

kdestroy：清理当前凭证 / 退出当前 kerberos 用户
kinit -R：续订票据
不同用户/机器的 ticket 时间可能不同，取决于 /etc/krb5.conf
必须在 ticket 有效期内续约才有效
一台机器同一时间只能运行一个 kerberos 用户：a 登录 user1 后，b 登录 user2 时 user1 的角色自动切换为 user2
查看配置：kadmin.local -q 'getprinc krbtgt/CAT.COM@CAT.COM'
hue 的 principal：hue/h1.cat.com@CAT.COM
配置文件目录：/etc/krb5.conf、/var/kerberos/krb5kdc/kdc.conf

启动服务命令：

systemctl start krb5kdc
systemctl start kadmin

查看 kerberos 用户列表：kadmin.local -q "listprincs"

kerberos的记录就完成了。下一篇研究sentry
